Board connector, 10 contacts, 1 row, male, straight orientation, 2.54mm pitch. Features brass and copper contacts with gold plating, 3A current rating, and 350V voltage rating. Solder termination, through-hole mount, and black polyester/glass housing. Operating temperature range of -55°C to 125°C. RoHS compliant and lead-free.
Voltage Rating350V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 90120-0770 technical specifications.
General
| Color | Black |
| Contact Gender | Male |
| Contact Material | Brass, Copper |
| Contact Mating Length | 0.266inch |
| Contact Plating | Gold |
| Contact Post Length | 2.9mm |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Black |
| Lead Free | Lead Free |
| Lead Length | 2.9mm |
| Lead Pitch | 2.54mm |
| Material | Glass, Polyester |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (DC) | 350.35kV |
| Mount | Through Hole |
| Number of Circuits | 9 |
| Number of Contacts | 10 |
| Number of Poles | 10 |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Plating | Nickel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | C-Grid III |
| Termination | Solder |
| Voltage Rating | 350V |
| Voltage Rating (AC) | 350V |
| DC Rated Voltage | 350V |
| Working Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 90120-0770 Datasheet
Download the complete datasheet for Molex 90120-0770 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

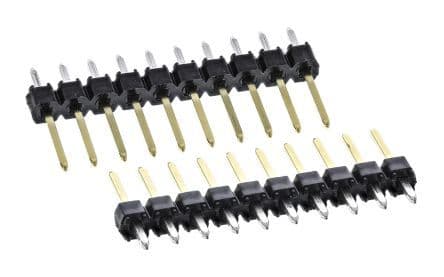

Product Images
