3-circuit, 1-row male header connector with a 2.54mm pitch. Features brass contacts with tin plating, a 3A current rating, and a 350V voltage rating. Designed for through-hole mounting with a right-angle orientation and solder termination. Operates within a temperature range of -55°C to 125°C, with a lead-free and RoHS compliant construction.
Voltage Rating350V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 90121-0123 technical specifications.
General
Color
Black
Contact Gender
Male
Contact Material
Brass
Contact Mating Length
0.266inch
Contact Plating
Tin
Contact Post Length
2.9mm
Contact Type
Male Pin
Current Rating
3A
Gender
Male
Glow Wire Compliant
Non-compliant
Housing Color
Black
Lead Free
Lead Free
Lead Length
2.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Circuits
3
Number of Contacts
3
Number of Positions
3
Number of Rows
1
Orientation
Right Angle
Package Quantity
1
Packaging
Bulk
Pitch
2.54mm
Plating
Tin
Radiation Hardening
No
RoHS Compliant
Yes
Series
C-Grid III™ 90121
Termination
Solder
Voltage Rating
350V
Compliance
RoHS
Compliant
Datasheet
Molex 90121-0123 Datasheet
Download the complete datasheet for Molex 90121-0123 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

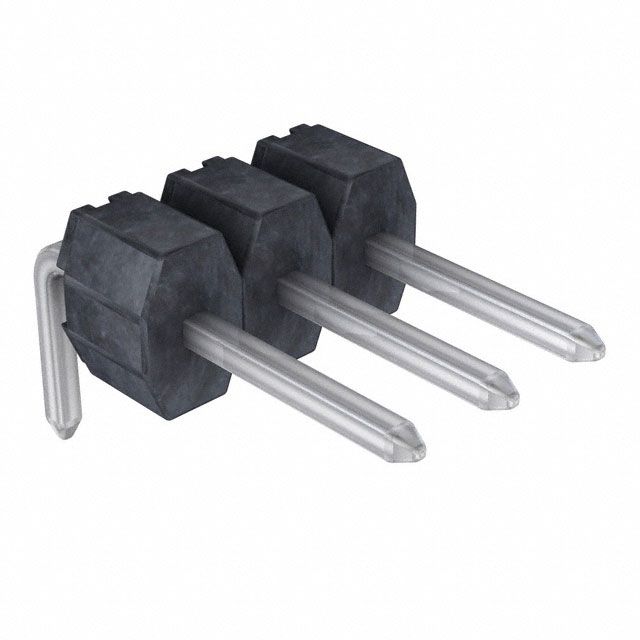

Product Images
