Right-angle male pin header connector with 12 contacts in a single row, featuring a 2.54mm (0.1 inch) pitch. This through-hole mount component offers a 3A current rating and 350V voltage rating. Constructed with brass contacts plated in gold and a black polyester/glass insulator, it operates within a temperature range of -55°C to 125°C. The connector is RoHS compliant and designed for solder termination.
Voltage Rating350V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 90121-0772 technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Mating Length | 0.266inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Black |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Material | Glass, Polyester |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Circuits | 11 |
| Number of Contacts | 12 |
| Number of Poles | 12 |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Plating | Tin |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | C-Grid III |
| Termination | Solder |
| Voltage Rating | 350V |
| Voltage Rating (AC) | 350V |
| DC Rated Voltage | 350V |
| Working Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 90121-0772 Datasheet
Download the complete datasheet for Molex 90121-0772 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

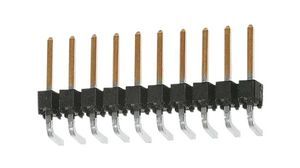

Product Images
