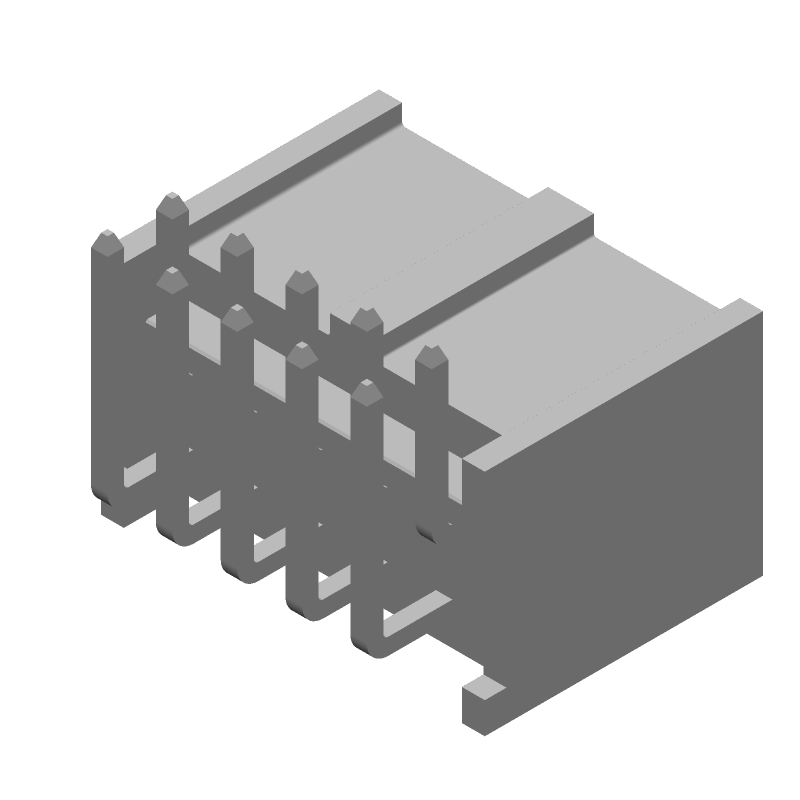

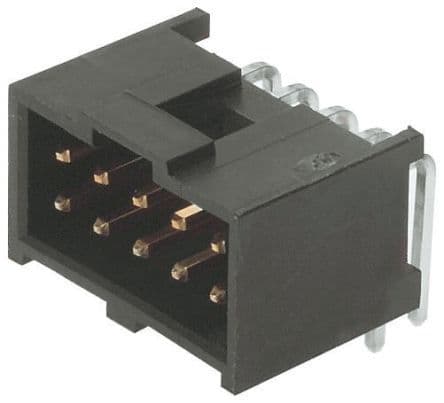

Right angle male header connector featuring 10 contacts in 2 rows with a 2.54mm (0.1 inch) pitch. This through-hole mount component offers a 3A current rating and a 350V voltage rating, with brass contacts plated in tin/lead. The black insulator housing is UL94 V-0 flammability rated and operates within a -55°C to 125°C temperature range.
Voltage Rating350V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 90130-3110 technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Mating Length | 0.266inch |
| Contact Plating | Tin, Lead |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Depth | 9.75mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Glow Wire Compliant | Non-compliant |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 15.42mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 350V |
| Max Voltage Rating (DC) | 350.35kV |
| Mount | Through Hole |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | C-Grid III™ 90130 |
| Termination | Solder |
| Voltage Rating | 350V |
| DC Rated Voltage | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 90130-3110 Datasheet
Download the complete datasheet for Molex 90130-3110 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
