22-circuit, 2-row male header connector with a 2.54mm (0.1 inch) pitch. Features straight, through-hole mounting and solder termination. Offers a 3A current rating and 350V voltage rating. Constructed with brass contacts plated in gold, housed in black insulator material. Operates within a temperature range of -55°C to 125°C.
Voltage Rating350V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 90131-0771 technical specifications.
General
| Color | Black |
| Contact Material | Brass |
| Contact Mating Length | 0.266inch |
| Contact Plating | Gold |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Circuits | 22 |
| Number of Contacts | 22 |
| Number of Positions | 22 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | C-Grid III™ 90131 |
| Termination | Solder |
| Voltage Rating | 350V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 90131-0771 Datasheet
Download the complete datasheet for Molex 90131-0771 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

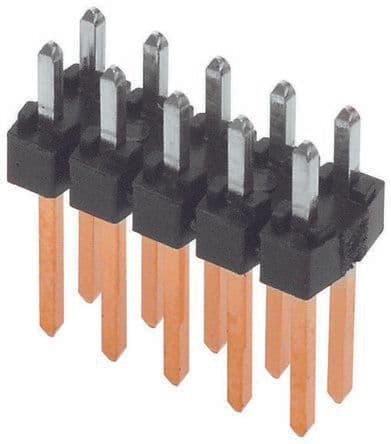

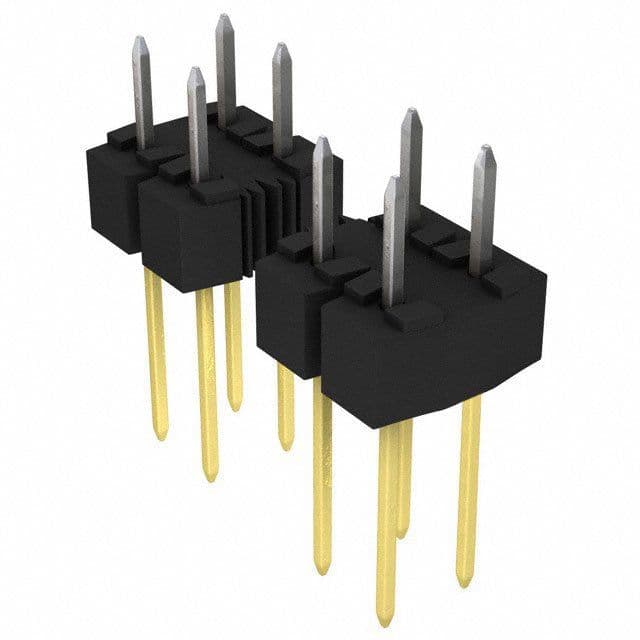

Product Images
