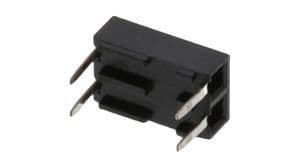

4-circuit, single-row, right-angle PC board connector with a 2.54mm pitch. Features female socket contacts made of bronze with 0.38µm gold selective plating. Rated for 3A current and 350V AC voltage, operating between -55°C and 125°C. Through-hole mount with solder termination, housed in black, lead-free, RoHS-compliant material.
Voltage Rating350V
Current Rating3A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 90148-1204 technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Contact Type
Female Socket
Current Rating
3A
Gender
Female
Glow Wire Compliant
Non-compliant
Height
3.3mm
Housing Color
Black
Lead Free
Lead Free
Length
10.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
350V
Mount
Through Hole
Number of Circuits
3
Number of Contacts
4
Number of Positions
4
Number of Rows
1
Orientation
Right Angle
Package Quantity
1
Packaging
Rail/Tube
Pitch
2.54mm
RoHS Compliant
Yes
Series
C-Grid® 90148
Termination
Solder
Voltage Rating
350V
Voltage Rating (AC)
350V
Width
8.5mm
Compliance
RoHS
Compliant
Datasheet
Molex 90148-1204 Datasheet
Download the complete datasheet for Molex 90148-1204 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
