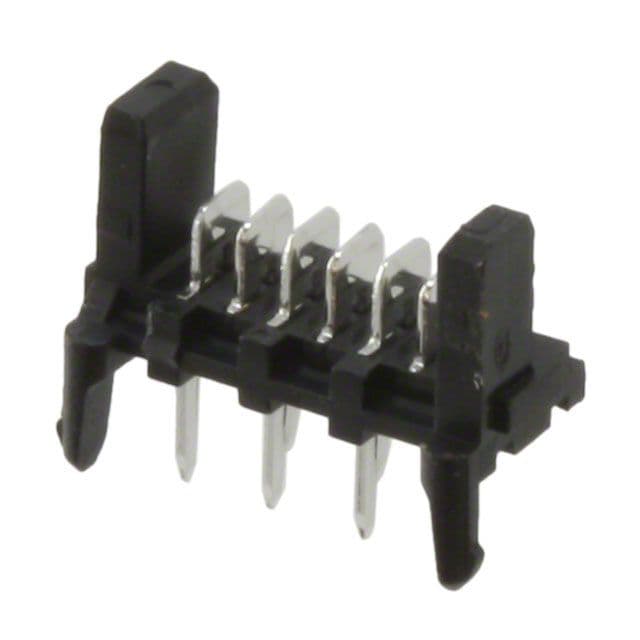

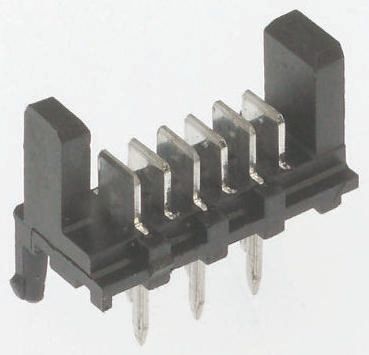

Vertical male header connector with 6 positions and 6 circuits. Features a 1.27mm pitch and brass contacts with tin plating. Rated for 1.2A current and 250V voltage, operating between -40°C and 105°C. Through-hole mounting with solder termination. Black housing, lead-free, and RoHS compliant.
Voltage Rating250V
Current Rating1.2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Molex 90325-9006 technical specifications.
General
Color
Black
Contact Material
Brass
Contact Plating
Tin
Contact Type
Blade Pin
Current Rating
1.2A
Gender
Male
Glow Wire Compliant
Non-compliant
Housing Color
Black
Lead Free
Lead Free
Lead Pitch
1.27mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Circuits
6
Number of Contacts
6
Number of Positions
6
Number of Rows
1
Orientation
Vertical
Package Quantity
1
Packaging
Rail/Tube
Pitch
1.27mm
RoHS Compliant
Yes
Series
Picoflex® PF-50 90325
Termination
Solder
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Molex 90325-9006 Datasheet
Download the complete datasheet for Molex 90325-9006 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
