4-position, 2-row female receptacle connector with a 1.27mm pitch and 3.81mm width. Features IDC termination, right-angle orientation, and a 1.2A contact current rating. Constructed with bronze contacts and tin plating, housed in white polyester with a UL94 V-0 flammability rating. Rated for 250V AC, operating between -40°C and 105°C, and is RoHS compliant.
Voltage Rating250V
Current Rating1.2A
MountingCable
Quick Jump:
Technical Specifications
Molex 90327-0304 technical specifications.
General
| Color | White |
| Contact Current Rating | 1.2A |
| Contact Material | Bronze, Tin |
| Contact Plating | Tin |
| Current Rating | 1.2A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Housing Color | White |
| Lead Free | Lead Free |
| Material | Polyester |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 9000 |
| Packaging | Bulk |
| Pitch | 1.27mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 90327 |
| Termination | IDC |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| Width | 3.81mm |
| Wire/Cable Gauge | 26AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 90327-0304 Datasheet
Download the complete datasheet for Molex 90327-0304 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

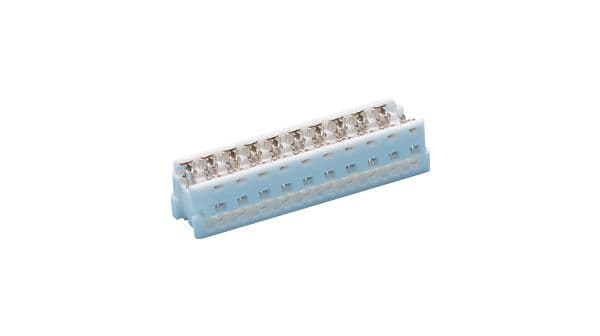

Product Images
