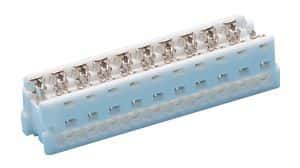

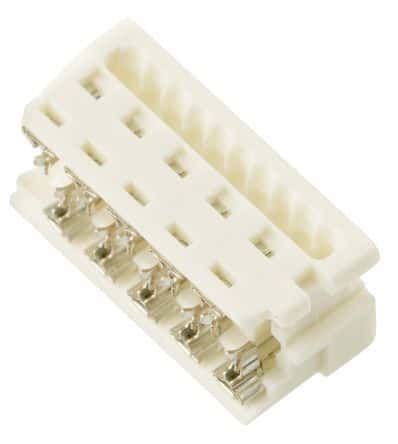

10-position, 2-row female receptacle with 2.54mm pitch. Features IDC termination, right-angle orientation, and a 1.2A current rating. Constructed with a white polyester insulator and tin-plated bronze contacts. Rated for 250V and operates within a -25°C to 105°C temperature range, with UL94 V-0 flammability.
Voltage Rating250V
Current Rating1.2A
MountingCable
Quick Jump:
Technical Specifications
Molex 90327-0310 technical specifications.
General
| Color | White |
| Contact Current Rating | 1.2A |
| Contact Gender | Female |
| Contact Material | Bronze, Tin |
| Contact Plating | Tin |
| Current Rating | 1.2A |
| Depth | 7mm |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Glow Wire Compliant | Non-compliant |
| Housing Color | White |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Length | 15.21mm |
| Material | Polyester |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Cable |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 6000 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PICOFLEX PF50 |
| Termination | IDT |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| Width | 11.43mm |
| Wire/Cable Gauge | 26AWG |
Compliance
| RoHS | Compliant |
Datasheet
Molex 90327-0310 Datasheet
Download the complete datasheet for Molex 90327-0310 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
