1.27mm pitch, right-angle, female receptacle header for cable mounting. Features 10 circuits, 10 contacts made of gold-plated bronze, and IDC termination. Rated for 250V and 1.2A, with an operating temperature range of -40°C to 105°C. White housing, lead-free, and RoHS compliant.
Voltage Rating250V
Current Rating1.2A
MountingCable
Quick Jump:
Technical Specifications
Molex 90327-3310 technical specifications.
General
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold
Current Rating
1.2A
Gender
Female
Glow Wire Compliant
Non-compliant
Housing Color
White
Lead Free
Lead Free
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Cable
Number of Circuits
10
Number of Contacts
10
Number of Positions
10
Number of Rows
2
Orientation
Right Angle
Package Quantity
1500
Packaging
Bulk
Pitch
1.27mm
Plating
Gold
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
90327
Termination
IDC
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Molex 90327-3310 Datasheet
Download the complete datasheet for Molex 90327-3310 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

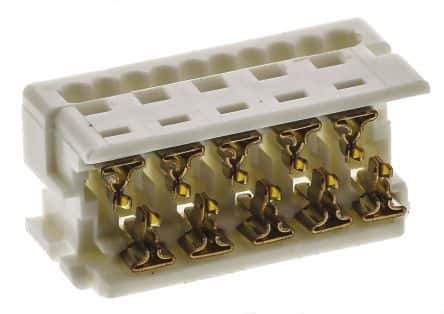

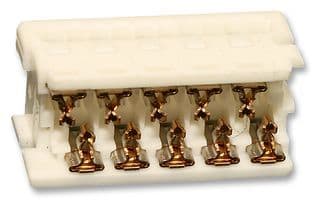

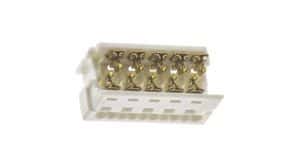

Product Images
