12-position, 0.5mm pitch FFC jumper cable assembly featuring copper conductors with tin plating. This grey and white cable offers a 152mm length, 500mA current rating, and a 60V voltage rating. Designed for same-side contact location, it operates within a temperature range of -40°C to 105°C and is RoHS compliant.
Package0127
Voltage Rating60V
Current Rating500mA
Quick Jump:
Technical Specifications
Molex 98266-0127 technical specifications.
General
| Cable Pitch | 0.5mm |
| Package/Case | 0127 |
| Color | Grey, White |
| Conductor Material | Copper |
| Contact Location | Same Side |
| Contact Plating | Tin |
| Current Rating | 500mA |
| ELV | Compliant |
| Length | 152mm |
| Max Current Rating | 500mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 60V |
| Number of Circuits | 12 |
| Number of Conductors | 12 |
| Number of Contacts | 12 |
| Number of Cores | 12 |
| Packaging | Bag |
| Pitch | 0.5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PREMO-FLEX FFC JUMPER |
| Voltage Rating | 60V |
| DC Rated Voltage | 60V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 98266-0127 Datasheet
Download the complete datasheet for Molex 98266-0127 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

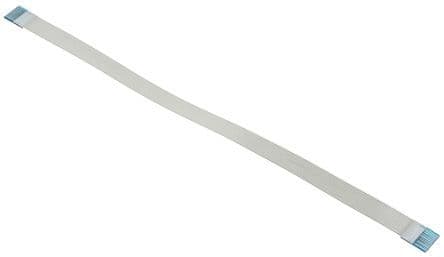

Product Images
