20-core ribbon cable assembly, FFC Type A, featuring a 1mm pitch and 1.2A current rating. Constructed with copper conductors and tin plating, this grey cable offers a 152mm (5.98 inch) length and operates within a temperature range of -40°C to 105°C. The assembly is RoHS compliant and rated for 60V AC/DC.
Voltage Rating60V
Current Rating1.2A
MountingCable
Quick Jump:
Technical Specifications
Molex 98267-0365 technical specifications.
General
| Cable Pitch | 1mm |
| Color | Grey |
| Conductor Material | Copper |
| Contact Location | Same Side |
| Contact Plating | Tin |
| Current Rating | 1.2A |
| ELV | Compliant |
| Max Current Rating | 1.2A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 60V |
| Mount | Cable |
| Number of Circuits | 20 |
| Number of Conductors | 20 |
| Number of Contacts | 20 |
| Number of Cores | 20 |
| Packaging | Bag |
| Pitch | 1mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PREMO-FLEX FFC JUMPER |
| Termination | Crimp |
| Voltage Rating | 60V |
Compliance
| RoHS | Compliant |
Datasheet
Molex 98267-0365 Datasheet
Download the complete datasheet for Molex 98267-0365 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

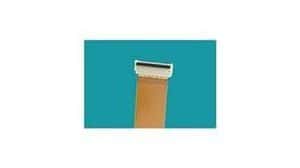

Product Images
