Technical Specifications
Molex M24308/4-4F technical specifications.
General
Body Material
Steel
Contact Material
Brass
Contact Plating
Copper, Nickel, Gold
Current Rating
5A
Depth
12.55mm
Gender
Male
Length
69.32mm
Mating Cycles
500
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Number of Contacts
37
Number of Ports
1
Number of Rows
2
Orientation
Straight
Reach SVHC Compliant
No
RoHS Compliant
No
Series
M24308
Termination
Crimp
Voltage Rating
1.25kV
Width
10.82mm
Compliance
RoHS
Not Compliant
Datasheet
Molex M24308/4-4F Datasheet
Download the complete datasheet for Molex M24308/4-4F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

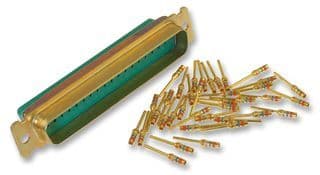

Product Images
