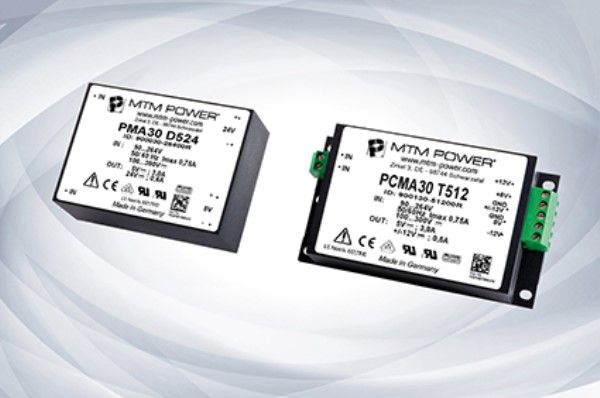

PCMA30T512

PSU, ENCAPSULATED, +5V, +/-12V; Power Supply Output Type:Fixed; Input Voltage AC Min:85V; Input Voltage AC Max:264V; No. of Outputs:3; Output Current - Output 1:3A; Output Current - Output 2:600mA; Output Current - Output 3:600mA; Current, Output 4:-; Output Power Max:30W; Output Voltage - Output 1:5V; Output Voltage - Output 2:-12V; Output Voltage - Output 3:12V; Output Voltage - Output 4:-; SVHC:No SVHC (15-Jun-2015); Applications:General Purpose; Approval Bodies:CE, cUL, UL, VDE; Efficiency:78%; External Depth:33mm; External Length / Height:120mm; External Width:65mm; Height:33mm; Input Frequency:50Hz; Length:110mm; Output Current:3A; Output Voltage:5V; Power Rating:30W; Power Supply Type:Switch Mode; Supply Voltage:240V; Supply Voltage Max:264VAC; Supply Voltage Min:85VAC; Width:65mm
