Mueller Electric
BU-P2142-2
Conn; Test; Banana; Jack; Mini; PanelMnt; Solder; Red; Nickel PLD Brass; 5A; 1000VDC; 10Pk
Voltage Rating1kV
Current Rating5A
MountingPanel
Quick Jump:
Technical Specifications
Mueller Electric BU-P2142-2 technical specifications.
General
Body Material
Nylon, Polyamide
Color
Red
Contact Material
Brass
Contact Plating
Nickel
Current Rating
5A
Gender
Female
Insulation
Mating End Insulated
Insulation Material
Nylon
Max Operating Temperature
105°C
Min Operating Temperature
-50°C
Mount
Panel
Packaging
Bulk
RoHS Compliant
No
Series
BU
Termination
Solder
Voltage Rating
1kV
DC Rated Voltage
1kV
Compliance
RoHS
Not Compliant
Datasheet
Mueller Electric BU-P2142-2 Datasheet
Download the complete datasheet for Mueller Electric BU-P2142-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

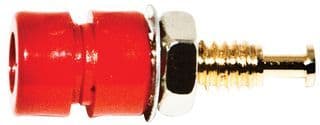

Product Images
