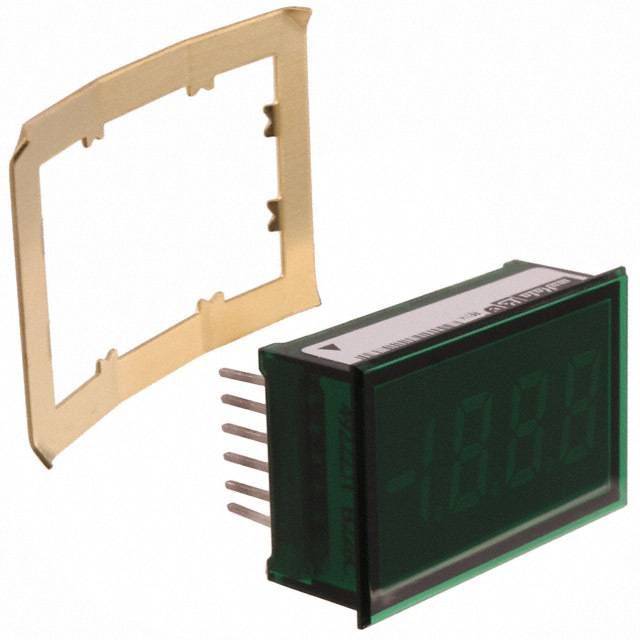

Digital panel meter featuring a 3.5-character green display. Designed for panel mounting, this component operates with a supply voltage range of 4.75V to 5.25V and consumes 90mA. Constructed from polycarbonate, it offers a 1GR input impedance and measures 12mm (L) x 35mm (W) x 22mm (H) with a depth of 17.45mm. Operating temperature range is 0°C to 60°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata DMS-20PC-0-GS-C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Murata DMS-20PC-0-GS-C technical specifications.
| Color | Green |
| Depth | 17.45mm |
| Display Type | Digital |
| Height | 22mm |
| Input Impedance | 1GR |
| Length | 12mm |
| Material | Polycarbonate |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Panel |
| Number Of Characters Per Row | 3.5 |
| Operating Supply Current | 90mA |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DMS-20PC |
| Supply Current | 90mA |
| Termination | PC Pin |
| Weight | 0.025lb |
| Width | 35mm |
| RoHS | Compliant |
