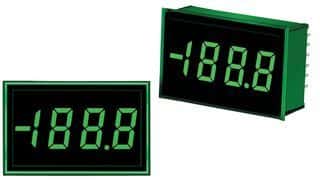

Digital panel meter for voltage measurement, featuring a 3.5 character display and PC pin termination. This polycarbonate meter operates within a 4.75V to 5.25V supply voltage range, consuming 90mA. Designed for panel mounting, it offers a 0°C to 60°C operating temperature range and is RoHS compliant. Dimensions include a 12mm length, 35mm width, 22mm height, and 17.45mm depth.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata DMS-20PC-1-GS-C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Murata DMS-20PC-1-GS-C technical specifications.
| Depth | 17.45mm |
| Display Type | Digital |
| Height | 22mm |
| Lead Free | Lead Free |
| Length | 12mm |
| Material | Polycarbonate |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Panel |
| Number Of Characters Per Row | 3.5 |
| Operating Supply Current | 90mA |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DMS-20PC |
| Termination | PC Pin |
| Weight | 0.025lb |
| Width | 35mm |
| RoHS | Compliant |
