The DMS-20PC-2-RS-C is a digital display with a maximum operating temperature of 60°C and a minimum operating temperature of 0°C. It has a maximum supply voltage of 5.25V and a minimum supply voltage of 4.75V, and operates at an operating supply current of 60mA. The display is mounted on a panel and has a package quantity of 12, packaged in bulk. It is RoHS compliant and has a weight of 0.025lb.
MountingPanel
Quick Jump:
Technical Specifications
Murata DMS-20PC-2-RS-C technical specifications.
General
| Depth | 25.4mm |
| Display Type | Digital |
| Height | 22mm |
| Length | 12mm |
| Material | Polycarbonate |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Panel |
| Number Of Characters Per Row | 3.5 |
| Operating Supply Current | 60mA |
| Package Quantity | 12 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | DMS-20PC |
| Termination | PC Pin |
| Weight | 0.025lb |
| Width | 35mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata DMS-20PC-2-RS-C Datasheet
Download the complete datasheet for Murata DMS-20PC-2-RS-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

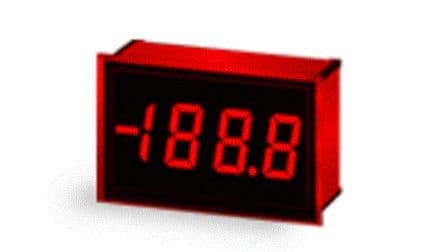

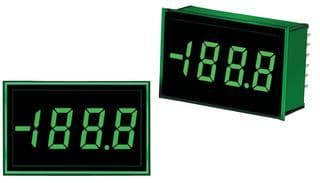

Product Images
