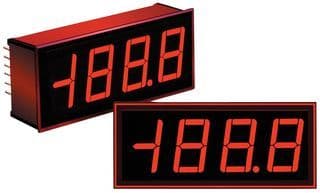

Digital panel meter for voltage measurement, featuring a 3.5 character display. Operates with a 5.25V supply voltage and draws 150mA, resulting in 60mW power consumption. Designed for panel mounting with PC pin termination, this meter functions within an operating temperature range of 0°C to 60°C. Dimensions include a length of 14mm, width of 55mm, height of 23mm, and depth of 20.62mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata DMS-30PC-1-RH-C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Murata DMS-30PC-1-RH-C technical specifications.
| Depth | 20.62mm |
| Display Type | Digital |
| Height | 23mm |
| Length | 14mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | 0°C |
| Mount | Panel |
| Number Of Characters Per Row | 3.5 |
| Operating Supply Current | 150mA |
| Operating Supply Voltage | 5.25V |
| Package Quantity | 12 |
| Packaging | Bulk |
| Power Consumption | 60mW |
| Reach SVHC Compliant | No |
| Series | DMS-30PC |
| Termination | PC Pin |
| Weight | 0.046lb |
| Width | 55mm |
| RoHS | Compliant |
Download the complete datasheet for Murata DMS-30PC-1-RH-C to view detailed technical specifications.
