Voltage Rating50V
Current Rating6A
MountingPanel, Through Hole
Quick Jump:
Technical Specifications
Neutrik NC3FAH2 technical specifications.
General
Approvals
UL
Body Material
Plastic
Color
Black
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold
Current Rating
6A
Flammability Rating
UL94 V-0
Gender
Female
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Panel, Through Hole
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Orientation
Horizontal
Package Quantity
10
Ratings
IP40
RoHS Compliant
Yes
Series
A
Termination
Solder
Voltage Rating
50V
Weight
0.246918oz
Compliance
RoHS
Compliant
Datasheet
Neutrik NC3FAH2 Datasheet
Download the complete datasheet for Neutrik NC3FAH2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

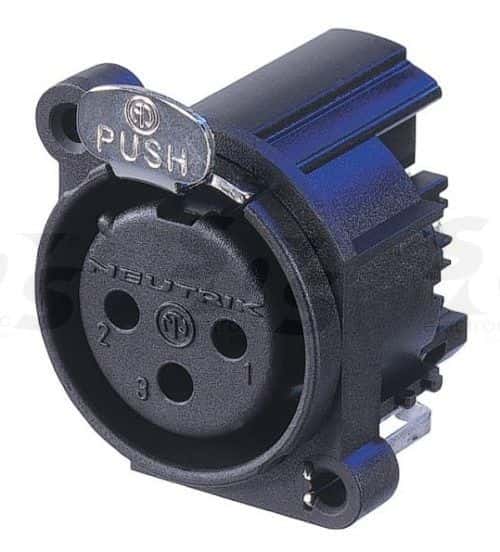

Product Images
