PackageMetal
Voltage Rating50V
Current Rating16A
MountingCable, Panel
Quick Jump:
Technical Specifications
Neutrik NC3MD-LX technical specifications.
General
Body Material
Metal
Package/Case
Metal
Color
Silver
Contact Material
Brass, Silver
Contact Plating
Silver
Current Rating
16A
Flammability Rating
UL94 HB
Gender
Male
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Cable, Panel
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Orientation
Straight
Package Quantity
40
Packaging
Bulk
Plating
Nickel
Reach SVHC Compliant
No
Series
DLX
Termination
Solder
Voltage Rating
50V
Weight
0.888904oz
Compliance
RoHS
Compliant
Datasheet
Neutrik NC3MD-LX Datasheet
Download the complete datasheet for Neutrik NC3MD-LX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

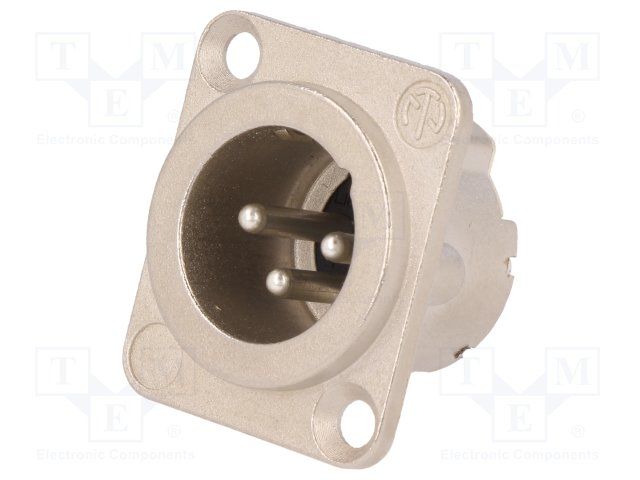

Product Images
