PackageMetal
Voltage Rating50V
Current Rating10A
MountingPanel
Quick Jump:
Technical Specifications
Neutrik NC4FD-LX technical specifications.
General
Body Material
Metal
Package/Case
Metal
Color
Silver
Contact Material
Brass, Silver
Contact Plating
Silver
Current Rating
10A
Flammability Rating
UL94 HB
Gender
Female
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Panel
Number of Contacts
4
Number of Ports
1
Number of Positions
4
Orientation
Straight
Package Quantity
10
Plating
Nickel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DLX
Termination
Solder
Voltage Rating
50V
Weight
1.100195oz
Compliance
RoHS
Compliant
Datasheet
Neutrik NC4FD-LX Datasheet
Download the complete datasheet for Neutrik NC4FD-LX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

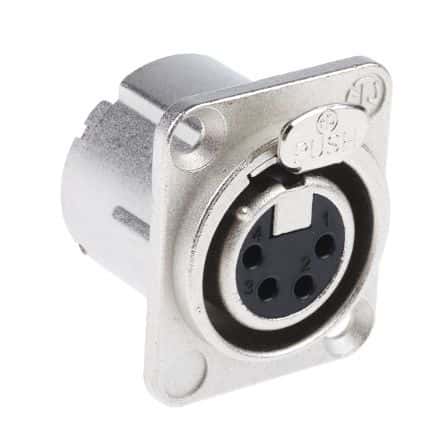

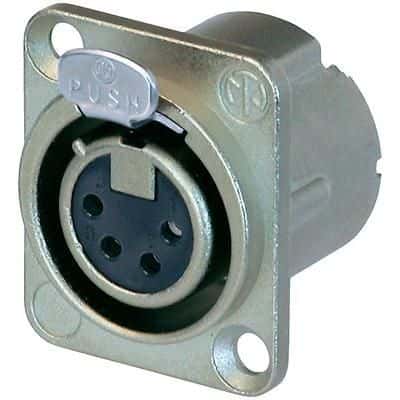

Product Images
