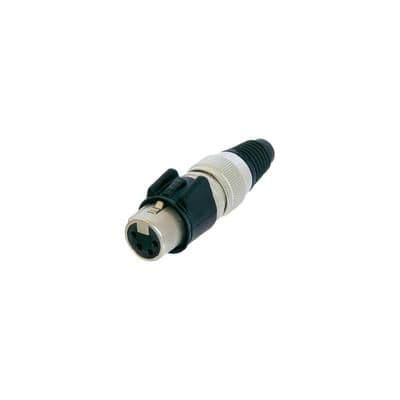

4-contact female XLR power connector for cable mounting. Features gold-plated brass contacts and a durable metal body with nickel plating. Rated for 10A current and 50V voltage, with an operating temperature range of -30°C to 80°C. This connector offers IP65 ingress protection and a UL94 HB flammability rating.
PackageMetal
Voltage Rating50V
Current Rating10A
MountingCable
Quick Jump:
Technical Specifications
Neutrik NC4FX-HD technical specifications.
General
| Body Material | Metal |
| Package/Case | Metal |
| Color | Silver |
| Contact Material | Brass, Gold |
| Contact Plating | Gold |
| Current Rating | 10A |
| Flammability Rating | UL94 HB |
| Gender | Female |
| Material | Stainless Steel |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Mount | Cable |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Orientation | Vertical |
| Package Quantity | 25 |
| Plating | Nickel |
| Ratings | IP65 |
| Reach SVHC Compliant | No |
| Series | X |
| Termination | Solder |
| Voltage Rating | 50V |
| Weight | 1.587328oz |
Compliance
| RoHS | Compliant |
Datasheet
Neutrik NC4FX-HD Datasheet
Download the complete datasheet for Neutrik NC4FX-HD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
