Technical Specifications
Neutrik NC6FD-LX technical specifications.
General
| Color | Silver |
| Contact Material | Brass, Silver |
| Contact Plating | Silver |
| Current Rating | 7.5A |
| Gender | Female |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Mount | Panel |
| Number of Contacts | 6 |
| Number of Ports | 1 |
| Number of Positions | 6 |
| Orientation | Straight |
| Package Quantity | 20 |
| Plating | Silver |
| Series | DLX |
| Termination | Solder |
| Voltage Rating | 50V |
| Weight | 1.100195oz |
Compliance
| RoHS | Compliant |
Datasheet
Neutrik NC6FD-LX Datasheet
Download the complete datasheet for Neutrik NC6FD-LX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

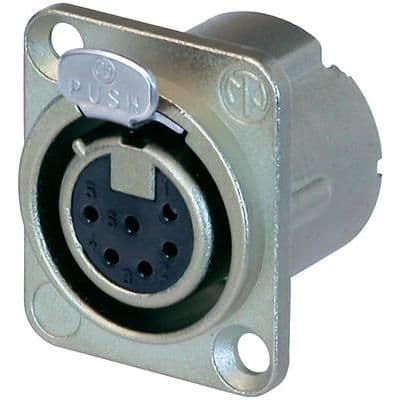

Product Images
