1/4" locking female phone jack with a straight orientation, featuring a robust metal body and housing. This 3-contact, 3-position connector utilizes silver-plated bronze and brass contacts for reliable signal transmission. Designed for panel mounting, it supports solder termination and accommodates wire/cable diameters up to 8mm. Operating within a temperature range of -25°C to 70°C, it boasts a 1kV voltage rating and 1000 mating cycles.
PackageMetal
Voltage Rating1kV
MountingPanel
Quick Jump:
Technical Specifications
Neutrik NJ3FP6C-BAG technical specifications.
General
| Body Material | Metal |
| Package/Case | Metal |
| Color | Black |
| Contact Gender | Female |
| Contact Material | Bronze, Brass, Silver |
| Contact Plating | Silver |
| Diameter | 0.945inch |
| Gender | Female |
| Insulation Material | Polyester |
| Length | 1.417inch |
| Mating Cycles | 1000 |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Panel |
| Number of Contacts | 3 |
| Number of Ports | 1 |
| Number of Positions | 3 |
| Orientation | Straight |
| Package Quantity | 10 |
| Pin Diameter | 6.35mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Solder |
| Voltage Rating | 1kV |
| Weight | 1oz |
| Wire/Cable Diameter | 8mm |
Compliance
| RoHS | Compliant |
Datasheet
Neutrik NJ3FP6C-BAG Datasheet
Download the complete datasheet for Neutrik NJ3FP6C-BAG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

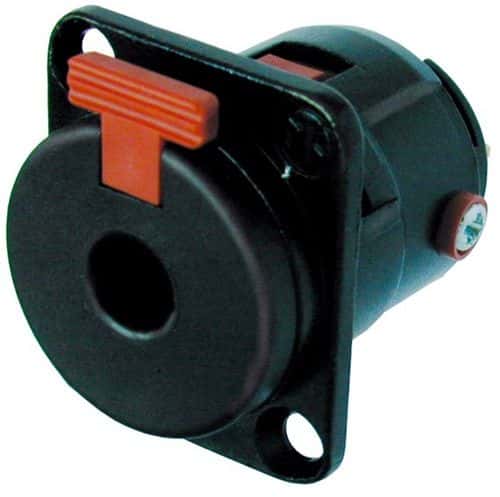

Product Images
