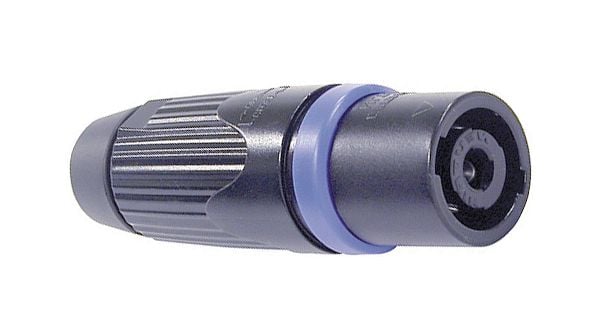

Four-pole male cable mount power connector featuring silver-plated copper contacts for reliable conductivity. Rated for 40A and 250V DC, this straight, black metal connector operates within a temperature range of -30°C to 80°C. Approvals include UL and CSA, with a UL94 HB flammability rating.
PackageMetal
Voltage Rating250V
Current Rating40A
MountingCable
Quick Jump:
Technical Specifications
Neutrik NLT4MX-BAG technical specifications.
General
Approvals
UL, CSA
Body Material
Metal
Package/Case
Metal
Color
Black
Contact Gender
Male
Contact Material
Copper
Contact Plating
Silver
Current Rating
40A
Flammability Rating
UL94 HB
Gender
Male
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Cable
Number of Contacts
4
Number of Poles
4
Number of Ports
1
Number of Positions
4
Orientation
Straight
Package Quantity
10
Reach SVHC Compliant
No
Series
STX
Termination
Solder
Voltage Rating
250V
DC Rated Voltage
250V
Weight
2.469177oz
Compliance
RoHS
Compliant
Datasheet
Neutrik NLT4MX-BAG Datasheet
Download the complete datasheet for Neutrik NLT4MX-BAG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
