Newhaven Display
NHD-0116DZ-NSW-BBW
16-Character STN Negative LCD Module, 5V, Blue Backlight, Parallel Interface
This 16-character STN negative LCD module features a blue backlight and operates at a maximum temperature of 70°C and a minimum of -20°C. It is designed for use with a 5V supply voltage and has a parallel interface. The module is packaged in bulk and is suitable for use in optoelectronic and display applications.
Quick Jump:
Technical Specifications
Newhaven Display NHD-0116DZ-NSW-BBW technical specifications.
General
| Background Color | Blue |
| Backlight Type | LED |
| Fluid Type | STN NEGATIVE |
| Interface | Parallel |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Number of Characters | 16 |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
Compliance
| RoHS | Not Compliant |
Datasheet
Newhaven Display NHD-0116DZ-NSW-BBW Datasheet
Download the complete datasheet for Newhaven Display NHD-0116DZ-NSW-BBW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

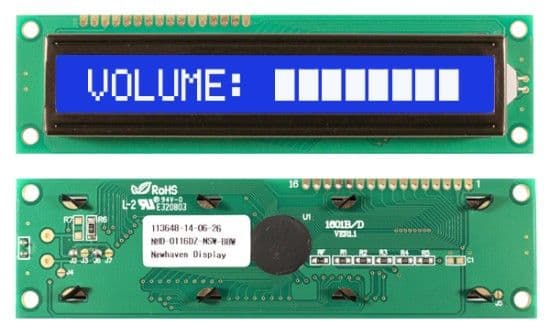

Product Images
