Newhaven Display
NHD-0420D3Z-FL-GBW-V3
STN Transflective LCD Module, 4x20 Char, Green, LED Backlight, I2C/SPI/RS-232
Character LCD module featuring a 20-character by 4-line display with a transflective STN positive fluid for green background illumination. Supports I2C, SPI, and RS-232 interfaces, operating at a 5V supply voltage. LED backlight provides visibility across an operating temperature range of -20°C to 70°C.
Quick Jump:
Technical Specifications
Newhaven Display NHD-0420D3Z-FL-GBW-V3 technical specifications.
General
Background Color
Green
Backlight Type
LED
Fluid Type
STN POSITIVE
Interface
I2C, SPI, RS-232
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Number of Characters
80
Operating Supply Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Newhaven Display NHD-0420D3Z-FL-GBW-V3 Datasheet
Download the complete datasheet for Newhaven Display NHD-0420D3Z-FL-GBW-V3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

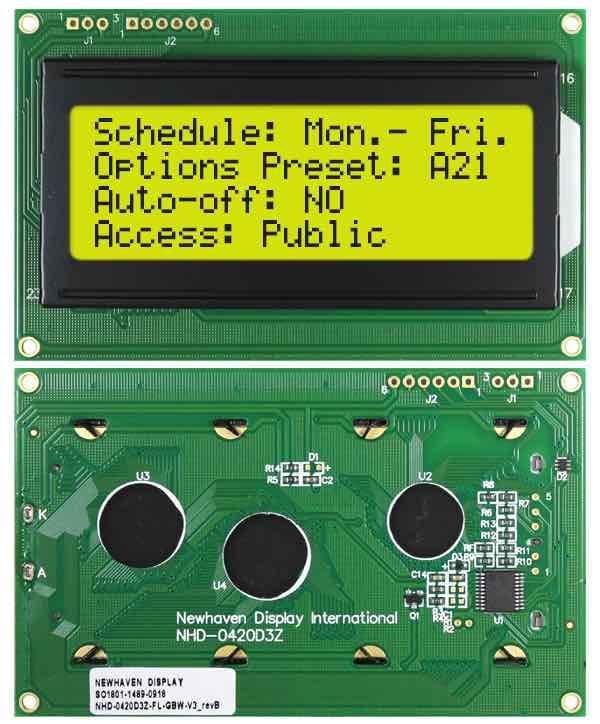

Product Images
