Character LCD module featuring a green STN fluid display with a 2:1 contrast ratio. Integrated LED backlight for enhanced visibility. Operates with a 5V supply voltage and utilizes a parallel interface for data communication. Suitable for a wide temperature range from -20°C to 70°C. Module package designed for screw mounting.
PackageModule
MountingScrew
Quick Jump:
Technical Specifications
Newhaven Display NHD-0440AZ-FL-YBW technical specifications.
General
| Background Color | Green |
| Backlight Type | LED |
| Package/Case | Module |
| Contrast Ratio | 2:1 |
| Fluid Type | STN |
| Interface | Parallel |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Screw |
| Number of Characters | 160 |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
Compliance
| RoHS | Not Compliant |
Datasheet
Newhaven Display NHD-0440AZ-FL-YBW Datasheet
Download the complete datasheet for Newhaven Display NHD-0440AZ-FL-YBW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

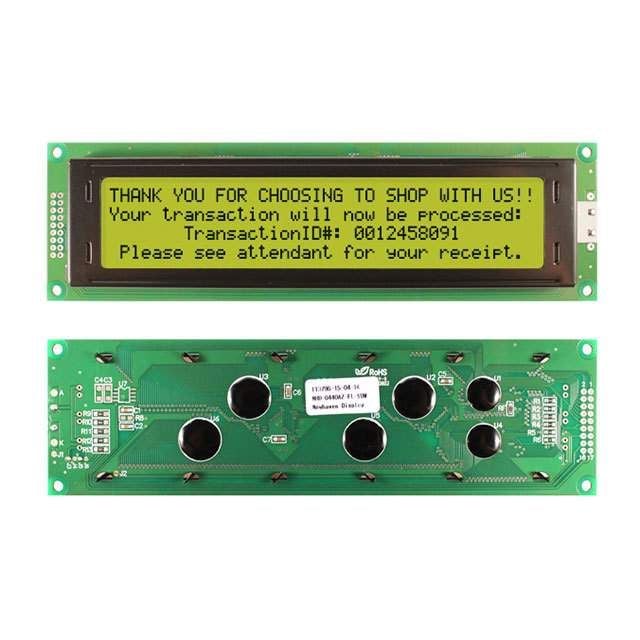

Product Images
