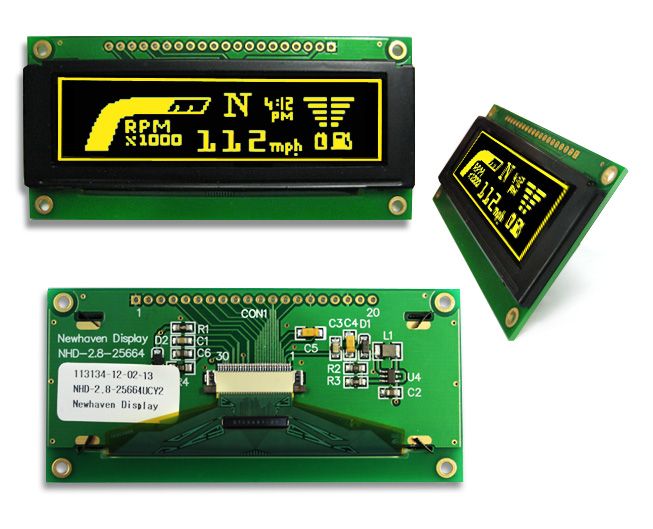

The NHD-2.8-25664UCY2 is a 2.8" 256x64 OLED display from Newhaven Display. It features a yellow color and a viewing angle of 80°. The display operates at a maximum temperature of 85°C and a minimum temperature of -40°C. It has a resolution of 256x64 pixels and is available in a wire mount package. The display is not RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Newhaven Display NHD-2.8-25664UCY2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Background Color | Black |
| Brightness | 80cd/m2 |
| Color | Yellow |
| Illumination Color | Yellow |
| Interface | SPI, Parallel, 8 bit, 3-WIRE, 4-WIRE |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Wire |
| Operating Supply Current | 148mA |
| Operating Supply Voltage | 2.95V |
| Package Quantity | 1 |
| Resolution (height) | 64pixel |
| Resolution (width) | 256pixel |
| RoHS Compliant | No |
| Viewing Angle | 80° |
| RoHS | Not Compliant |
Download the complete datasheet for Newhaven Display NHD-2.8-25664UCY2 to view detailed technical specifications.
