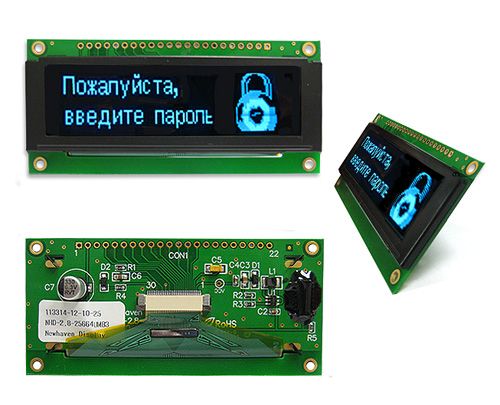

The NHD-2.8-25664UMB3 is a 2.8" OLED module with a resolution of 256x64 pixels. It operates at a maximum temperature of 70°C and a minimum of -20°C. The module is supplied with 3V and draws a maximum current of 165mA. It features a SPI and parallel interface, and is packaged in a module case with a screw mount.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Newhaven Display NHD-2.8-25664UMB3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Background Color | Black |
| Brightness | 80cd/m2 |
| Package/Case | Module |
| Contrast Ratio | 2000:1 |
| Illumination Color | Blue |
| Interface | SPI, Parallel, 8 bit, 3-WIRE, 4-WIRE, Serial |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Screw |
| Operating Supply Current | 165mA |
| Operating Supply Voltage | 3V |
| Package Quantity | 1 |
| Packaging | Tray |
| Resolution (height) | 64pixel |
| Resolution (width) | 256pixel |
| Touchscreen | No |
| Viewing Angle | 80° |
| RoHS | Compliant |
