Technical Specifications

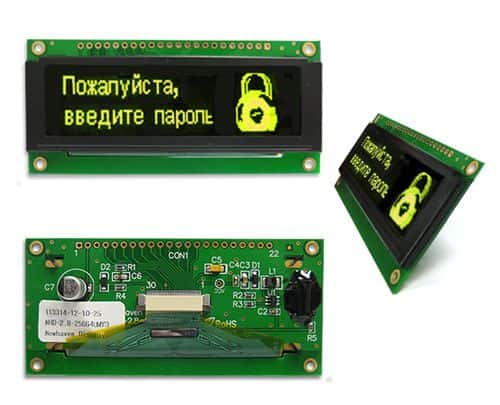

Newhaven Display NHD-2.8-25664UMY3 technical specifications.
General
| Background Color | Black |
| Brightness | 80cd/m2 |
| Package/Case | Module |
| Contrast Ratio | 2000:1 |
| Diagonal Size | 2.8inch |
| Illumination Color | Yellow |
| Interface | SPI, Parallel, 8 bit, 3-WIRE, 4-WIRE, Serial |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Screw |
| Operating Supply Current | 163mA |
| Operating Supply Voltage | 3V |
| Package Quantity | 100 |
| Packaging | Tray |
| Resolution (height) | 64pixel |
| Resolution (width) | 256pixel |
| Touchscreen | No |
| Viewing Angle | 80° |
Compliance
| RoHS | Compliant |
Datasheet
Newhaven Display NHD-2.8-25664UMY3 Datasheet
Download the complete datasheet for Newhaven Display NHD-2.8-25664UMY3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
