Newhaven Display
NHD-4.3-480272EF-ATXL#-T
4.3in TFT 480x272Pixels Parallel 340cd/m2 LED Backlight -20°C to 70°C 40-Pin
MountingPanel
Quick Jump:
Technical Specifications
Newhaven Display NHD-4.3-480272EF-ATXL#-T technical specifications.
General
| Background Color | White |
| Backlight Type | LED |
| Diagonal Size | 4.3inch |
| Interface | 24 bit, RGB, Parallel |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Panel |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Resolution (height) | 272pixel |
| Resolution (width) | 480pixel |
| Touchscreen | Resistive |
Compliance
| RoHS | Compliant |
Datasheet
Newhaven Display NHD-4.3-480272EF-ATXL#-T Datasheet
Download the complete datasheet for Newhaven Display NHD-4.3-480272EF-ATXL#-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

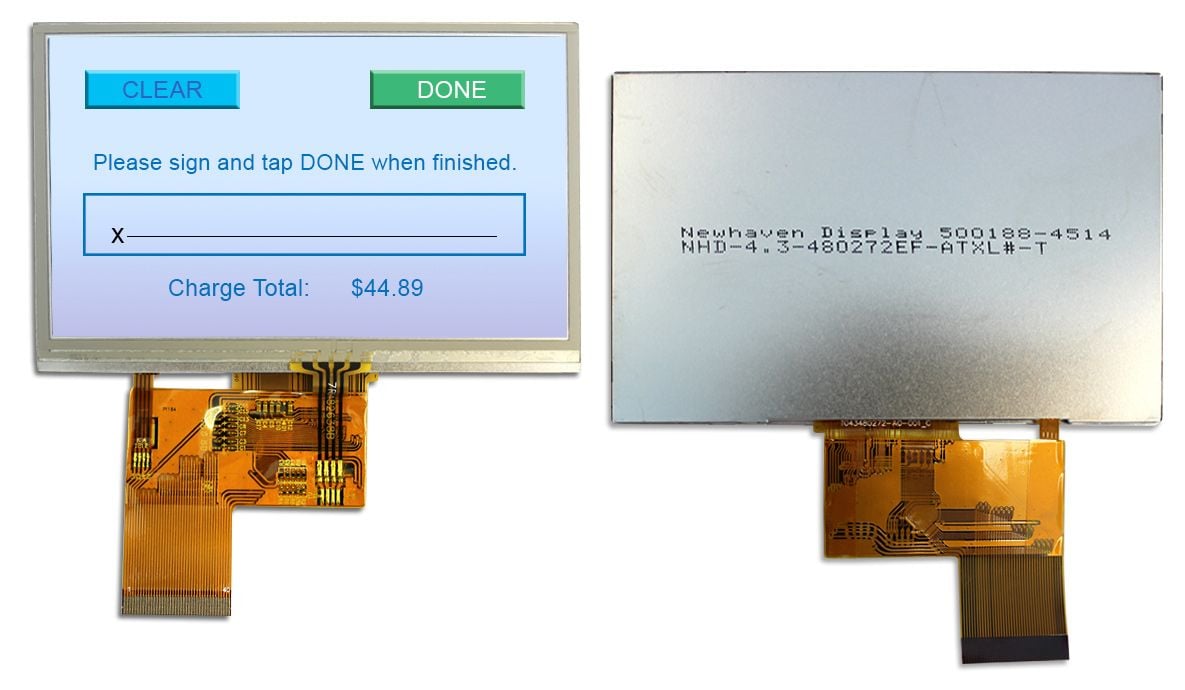

Product Images
