5-inch LCD TFT display featuring an 800x480 resolution and 24-bit RGB parallel interface. Integrated resistive touchscreen functionality enhances user interaction. LED backlight provides illumination, operating within a -20°C to 70°C temperature range. Requires 3.3V supply voltage and draws 164mA operating current.
Quick Jump:
Technical Specifications
Newhaven Display NHD-5.0-800480TF-ATXL#-T technical specifications.
General
| Backlight Type | LED |
| Diagonal Size | 5inch |
| Interface | 24 bit, RGB, Parallel |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Operating Supply Current | 164mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Resolution (height) | 480pixel |
| Resolution (width) | 800pixel |
| Touchscreen | Resistive |
Compliance
| RoHS | Compliant |
Datasheet
Newhaven Display NHD-5.0-800480TF-ATXL#-T Datasheet
Download the complete datasheet for Newhaven Display NHD-5.0-800480TF-ATXL#-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

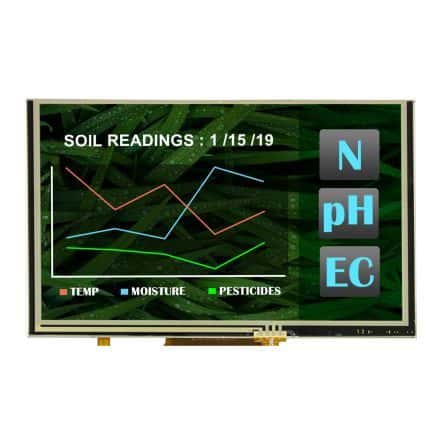

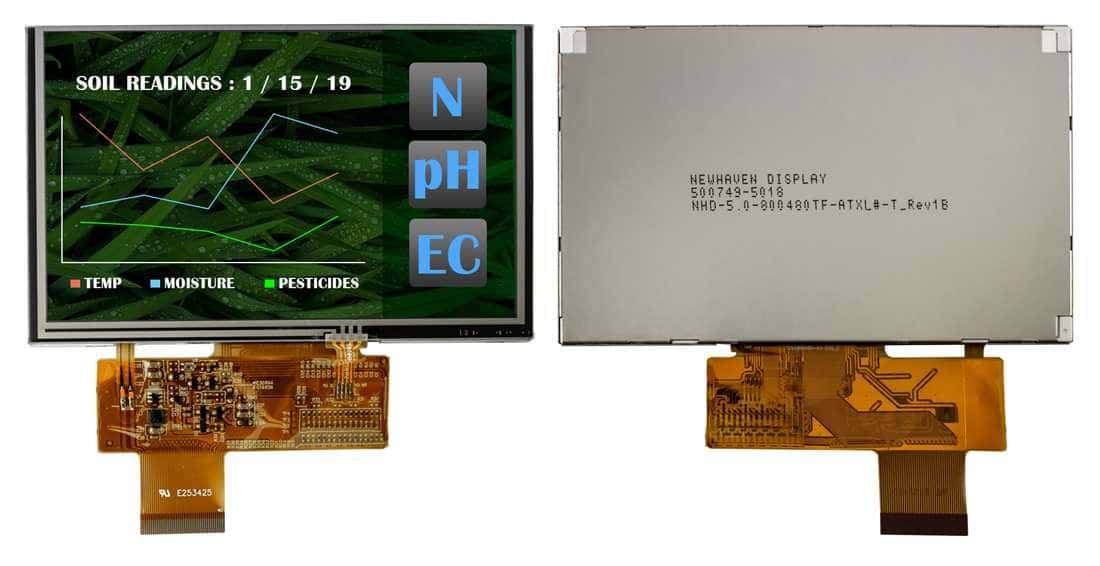

Product Images
