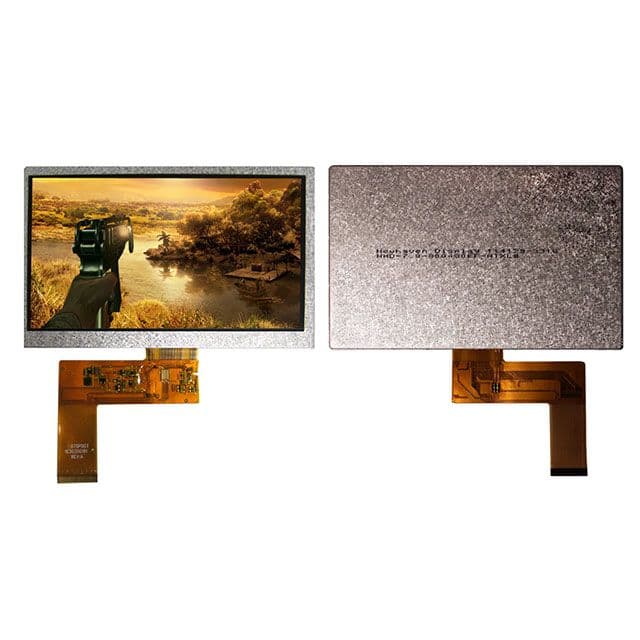

The NHD-7.0-800480EF-ATXL# is a 7inch TFT display with a resolution of 800x480 pixels. It features an LED backlight and a 24-bit parallel interface. The display operates within a temperature range of -20°C to 70°C and requires a 3.3V supply voltage at a maximum current of 85mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Newhaven Display NHD-7.0-800480EF-ATXL# datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Backlight Type | LED |
| Diagonal Size | 7inch |
| Interface | 24 bit, RGB, Parallel |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Operating Supply Current | 85mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Resolution (height) | 480pixel |
| Resolution (width) | 800pixel |
| RoHS | Compliant |
Download the complete datasheet for Newhaven Display NHD-7.0-800480EF-ATXL# to view detailed technical specifications.
