128x32 pixel monochrome graphic display featuring a black background and white FSTN positive display fluid. SPI interface enables efficient data transfer. Integrated LED backlight provides illumination. Operates reliably across a wide temperature range from -20°C to 70°C.
Quick Jump:
Technical Specifications
Newhaven Display NHD-C12832A1Z-FSB-FBW-3V3 technical specifications.
General
| Background Color | Black |
| Backlight Type | LED |
| Fluid Type | FSTN POSITIVE |
| Interface | SPI |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Packaging | Bulk |
| Resolution (height) | 32pixel |
| Resolution (width) | 128pixel |
Compliance
| RoHS | Not Compliant |
Datasheet
Newhaven Display NHD-C12832A1Z-FSB-FBW-3V3 Datasheet
Download the complete datasheet for Newhaven Display NHD-C12832A1Z-FSB-FBW-3V3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

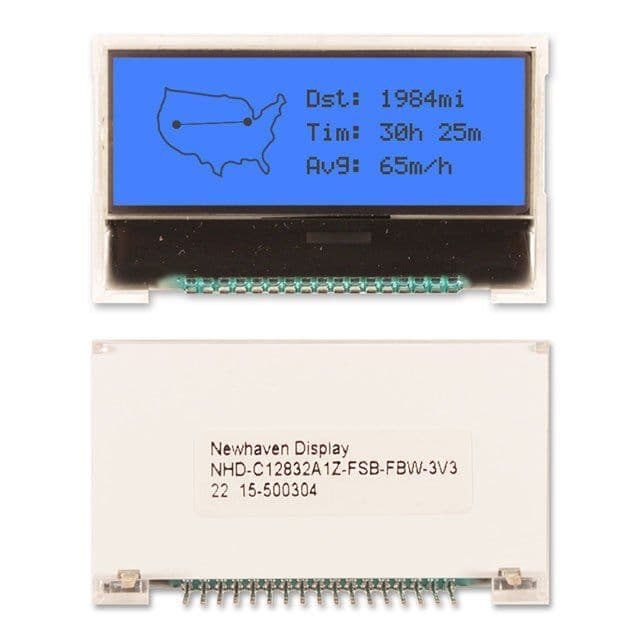

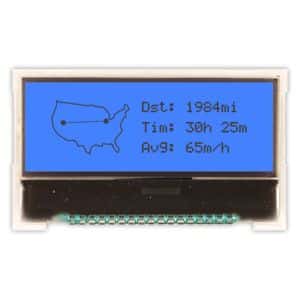

Product Images
