Newhaven Display
NHD-C12864WC-FSW-FBW-3V3-M
128x64 Graphic LCD Module, FSTN, Transflective, LED Backlight
Graphic LCD module featuring a 128x64 pixel resolution with a transflective FSTN positive display. Offers black background with LED backlight and a 5:1 contrast ratio. Supports serial and parallel interfaces for versatile connectivity. Operates within a temperature range of -20°C to 70°C and features screw mounting.
MountingScrew
Quick Jump:
Technical Specifications
Newhaven Display NHD-C12864WC-FSW-FBW-3V3-M technical specifications.
General
Background Color
Black
Backlight Type
LED
Contrast Ratio
5:1
Fluid Type
FSTN POSITIVE
Interface
Serial, Parallel
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Screw
Resolution (height)
64pixel
Resolution (width)
128pixel
Touchscreen
No
Compliance
RoHS
Not Compliant
Datasheet
Newhaven Display NHD-C12864WC-FSW-FBW-3V3-M Datasheet
Download the complete datasheet for Newhaven Display NHD-C12864WC-FSW-FBW-3V3-M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

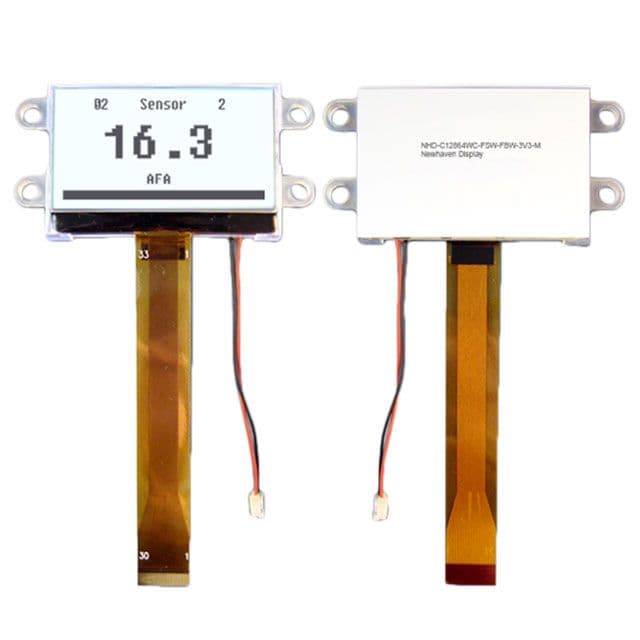

Product Images
