Technical Specifications
Nexans 1205-FNL technical specifications.
General
| Color | Grey |
| Conductor Material | Copper |
| Current Rating | 16A |
| Jacket Material | PVC |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -5°C |
| Mount | Cable |
| Number of Conductors | 5 |
| Number of Cores | 5 |
| Outside Diameter | 7.9mm |
| Reach SVHC Compliant | No |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Nexans 1205-FNL Datasheet
Download the complete datasheet for Nexans 1205-FNL to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

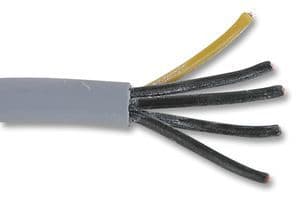

Product Images
