Illuminated & Non-Illuminated Pushbutton Switch featuring a momentary SPDT contact configuration. Rated for 6A at 125VAC and 30VDC, this switch offers a 15,000-cycle electrical life and 30,000-cycle mechanical life. The round plunger actuator is designed for panel mounting with solder lug terminations. Constructed with copper contacts and silver plating, it operates within a temperature range of -30°C to 70°C and boasts IP67, waterproof, and dust-tight ratings.
Current Rating6A
MountingPanel
Quick Jump:
Technical Specifications
NKK Switches WB15S-DA technical specifications.
General
Actuator Type
Round, Button
Contact Current Rating
6A
Contact Material
Copper
Contact Plating
Silver
Current Rating
6A
Electrical Life
15000Cycles
Lead Free
Lead Free
Length
28.8mm
Max Operating Temperature
70°C
Mechanical Life
30000Cycles
Min Operating Temperature
-30°C
Mount
Panel
Number of Poles
1
Number of Positions
2
Orientation
Vertical
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
WB
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Width
19.4mm
Compliance
RoHS
Compliant
Datasheet
NKK Switches WB15S-DA Datasheet
Download the complete datasheet for NKK Switches WB15S-DA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

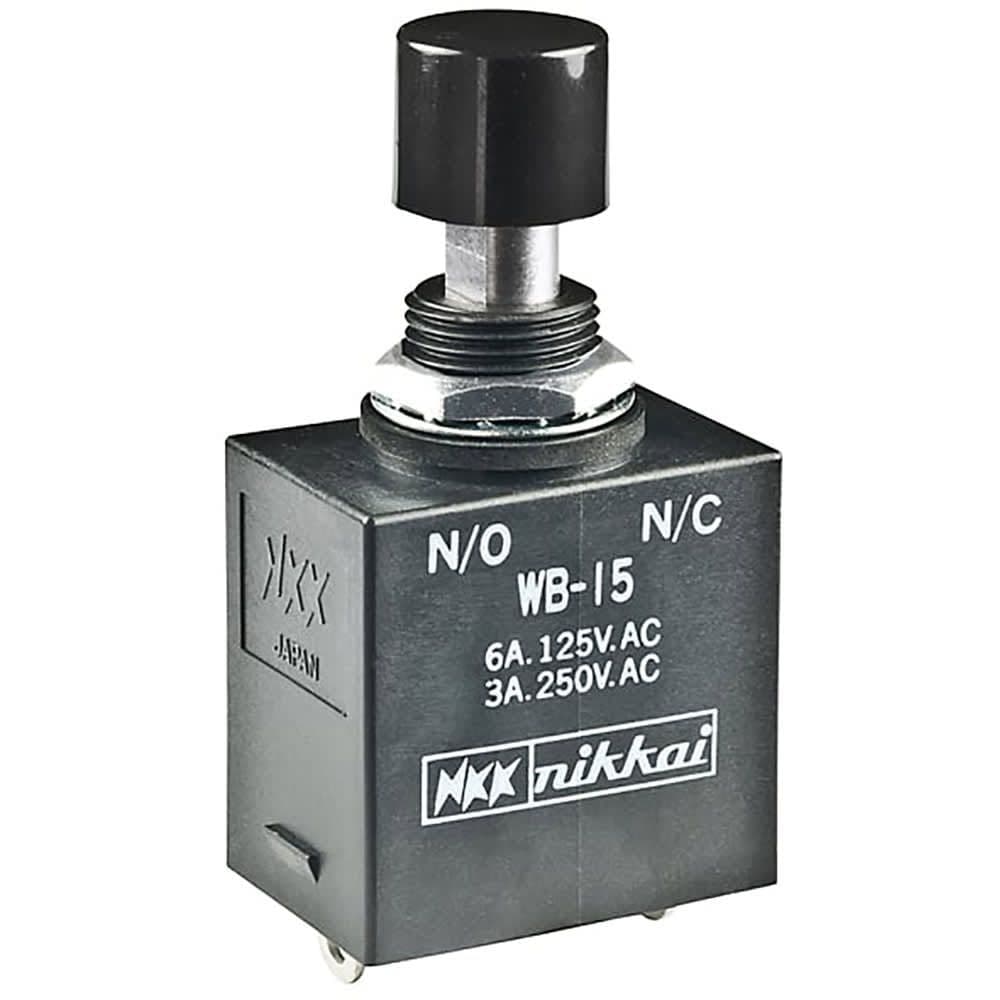

Product Images
