24VDC axial fan with 114.7 CFM airflow, 2800 RPM speed, and 41.5 dB noise level. Features ball bearing for durability, a 119mm square frame with 25.5mm width and 25.4mm height, and operates within a 14°C to 140°C temperature range. Constructed from PVC material with lead wire termination, this fan offers a maximum power consumption of 6.96W.
FrequencyNot Required Hz
PackageAxial
Voltage Rating24V
Power6.96W
Quick Jump:
Technical Specifications
Nmb-Minebea 4710KL-05W-B50-E00 technical specifications.
General
| Airflow | 114.7CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Color | Black |
| Depth | 119mm |
| Height | 25.4mm |
| Lead Free | Lead Free |
| Length | 119mm |
| Material | PVC |
| Max Operating Temperature | 140°C |
| Min Operating Temperature | 14°C |
| Max Power Dissipation | 6.96W |
| Noise (dB) | 41.5dB |
| Noise Level | 41.5 dB |
| Operating Frequency | Not Required Hz |
| Packaging | Bulk |
| Power Consumption | 6.96W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RPM | 2800RPM |
| Series | 4710KL |
| Termination | Lead Wire |
| Voltage Rating | 24V |
| DC Rated Voltage | 24V |
| Weight | 0.397lb |
| Width | 25.5mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Nmb-Minebea 4710KL-05W-B50-E00 Datasheet
Download the complete datasheet for Nmb-Minebea 4710KL-05W-B50-E00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

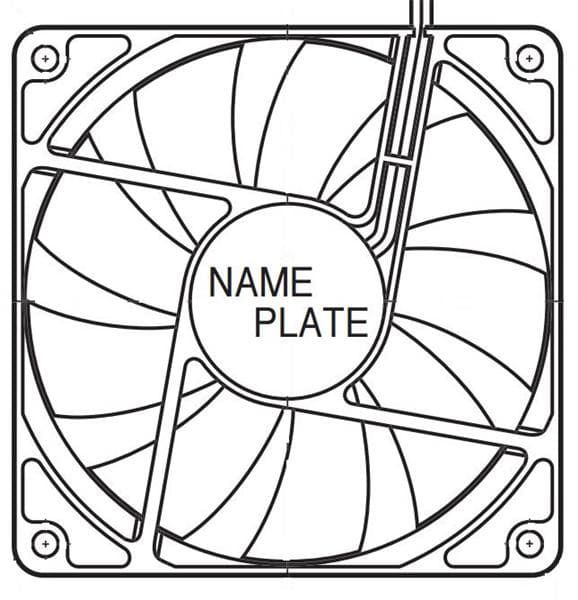

Product Images
