Axial fan, 60mm x 60mm x 25.5mm, operating at 24VDC with a 4200 RPM speed. Delivers 19.1 CFM airflow and features a Hydro-Wave bearing for quiet operation at 32dB. Rated for 2.04W input power, with a lead length of 315mm and 2-wire lead termination. Operates within a temperature range of 14°C to 70°C.
FrequencyNot RequiredHz
PackageAxial
Voltage Rating24V
Current Rating85mA
Quick Jump:
Technical Specifications
Nmb-Minebea FBA06A24H1A technical specifications.
General
| Airflow | 19.1CFM |
| Bearing Type | Hydro-Wave |
| Package/Case | Axial |
| Current Rating | 85mA |
| Depth | 60mm |
| Height | 60mm |
| Input Power | 2.04W |
| Lead Free | Lead Free |
| Lead Length | 315mm |
| Length | 60mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 14°C |
| Max Power Dissipation | 2.04W |
| Max Supply Voltage (DC) | 27.6V |
| Min Supply Voltage (DC) | 14V |
| Noise (dB) | 32dB |
| Noise Level | 32dB |
| Operating Frequency | Not RequiredHz |
| Operating Supply Voltage | 24V |
| Power Consumption | 2.04W |
| RPM | 4200RPM |
| Series | FBA |
| Termination | 2 Wire Leads |
| Voltage Rating | 24V |
| DC Rated Voltage | 24V |
| Weight | 0.198lb |
| Width | 25.5mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Nmb-Minebea FBA06A24H1A Datasheet
Download the complete datasheet for Nmb-Minebea FBA06A24H1A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

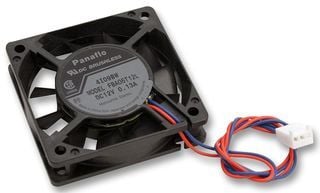

Product Images
