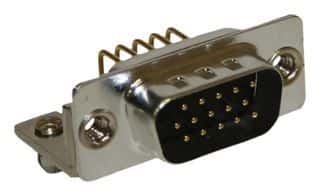

High-density D-subminiature plug connector featuring 15 positions and 3 rows. Male gender with brass contacts plated in gold for signal transmission, rated for 5A current. Steel body with black nylon dielectric, offering UL94 V-0 flammability. Designed for through-hole, panel mount with solder termination and nickel plating. Operating temperature range from -55°C to 105°C, with IP67, waterproof, and dust-tight ratings.
Current Rating5A
MountingThrough Hole, Panel
Quick Jump:
Technical Specifications
Norcomp 781-M15-113R141 technical specifications.
General
| Body Material | Steel |
| Color | Black |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Type | Signal |
| Current Rating | 5A |
| Dielectric Material | Nylon |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Lead Free | Lead Free |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, Panel |
| Number of Contacts | 15 |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Package Quantity | 36 |
| Packaging | Tray |
| Plating | Nickel |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Seal-D 781-M |
| Termination | Solder |
Compliance
| RoHS | Compliant |
