Shielded, 180° backshell for round wire/cable, featuring an ABS body and nickel-plated copper shielding. This component, with a shell size of 25 and 25 positions, measures 55mm in length, 44.5mm in width, and 16.4mm in height. Constructed from ABS plastic, it boasts a silver color and a UL94 HB flammability rating. The product is RoHS compliant and lead-free.
Quick Jump:
Technical Specifications
Norcomp 977-025-020R121 technical specifications.
General
Body Material
ABS
Color
Silver
Flammability Rating
UL94 HB
Height
16.4mm
Lead Free
Lead Free
Length
55mm
Material
Plastic
Number of Positions
25
Package Quantity
100
Plating
Copper
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
977
Shell Material
ABS
Shell Size
25
Shielding
Shielded
Width
44.5mm
Wire/Cable Type
Round
Compliance
RoHS
Compliant
Datasheet
Norcomp 977-025-020R121 Datasheet
Download the complete datasheet for Norcomp 977-025-020R121 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

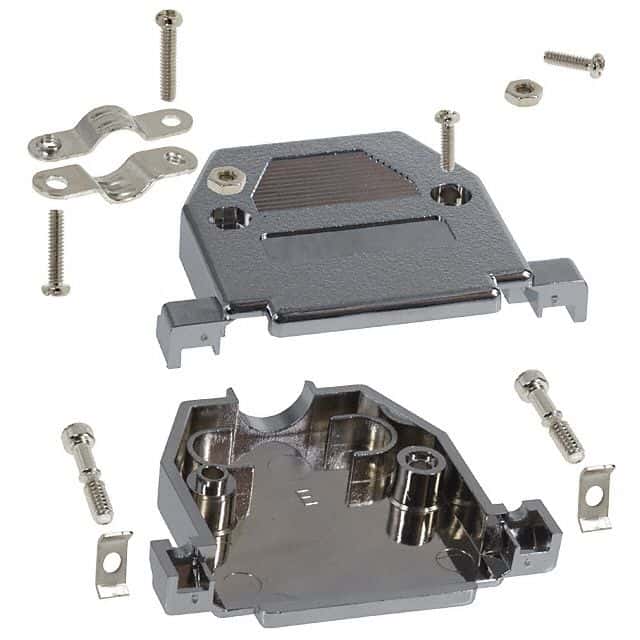

Product Images
