The NTE BC337 is a TO-226-3 packaged NPN transistor with a collector-emitter breakdown voltage of 45V and a maximum collector current of 800mA. It has a maximum power dissipation of 625mW and is lead free. The transistor is mounted through a hole and is available in bulk packaging.
PackageTO-226-3
Current Rating800mA
MountingThrough Hole
PolarityNPN
Quick Jump:
Technical Specifications
NTE Electronics BC337 technical specifications.
General
| Package/Case | TO-226-3 |
| Collector Emitter Breakdown Voltage | 45V |
| Collector-emitter Voltage-Max | 700mV |
| Current Rating | 800mA |
| Lead Free | Lead Free |
| Max Collector Current | 100nA |
| Max Power Dissipation | 625mW |
| Mount | Through Hole |
| Packaging | Bulk |
| Polarity | NPN |
| Power Dissipation | 625mW |
| Transition Frequency | 100MHz |
| DC Rated Voltage | 45V |
Compliance
| RoHS | Not Compliant |
Datasheet
NTE Electronics BC337 Datasheet
Download the complete datasheet for NTE Electronics BC337 to view detailed technical specifications.
No datasheet is available for this part.

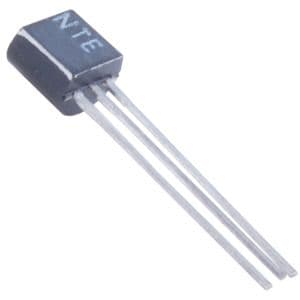

Product Images
