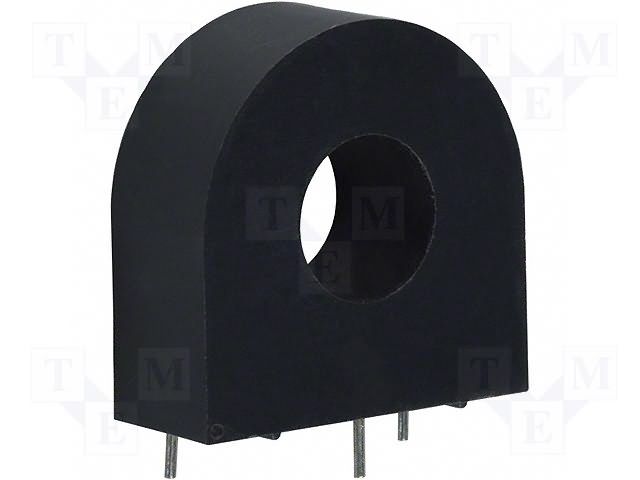

The AC1100 is a 100A isolated transformer with a maximum operating temperature of 120°C and a minimum operating temperature of -40°C. It features a through hole mount and a packaging style of rail/Tube. The transformer has a DC resistance of 21.3R and an isolation voltage of 4kV. It operates within a frequency range of 50Hz to 60Hz.
Checking distributor stock and pricing after the page loads.
| DC Resistance (DCR) | 21.3R |
| Depth | 44.5mm |
| Input Current | 100A |
| Inside Diameter | 19.05mm |
| Isolation Voltage | 4kV |
| Length | 44.5mm |
| Max Frequency | 60Hz |
| Min Frequency | 50Hz |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Phases | 1 |
| Packaging | Rail/Tube |
| Primary Current | 100A |
| Series | AC |
| Termination | PC Pin |
| Turns Ratio | 1000:1 |
| Weight | 0.177lb |
| Width | 14.3mm |
| RoHS | Compliant |
