General purpose analog circuit IC featuring unidirectional channels and a 110Mbps data rate. This SOIC-8 package component operates with a 3V to 5.5V supply voltage and offers 2 channels with a 10mA output current. Key specifications include a 2.5kV isolation voltage, 15ns propagation delay, and 3ns pulse width distortion. Designed for surface mount applications, it operates within a -40°C to 100°C temperature range and is RoHS compliant.
PackageSOIC
Current2.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NVE IL712-3E technical specifications.
General
| Package/Case | SOIC |
| Channel Type | Unidirectional |
| Data Rate | 110Mbps |
| Depth | 6.2mm |
| Isolated Power | No |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Current | 3mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Output Current | 10mA |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Propagation Delay | 15ns |
| Pulse Width Distortion (PWD) | 3ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | IsoLoop® |
| Supply Current | 2.5mA |
| Type | General Purpose |
| Width | 1.75mm |
Compliance
| RoHS | Compliant |
Datasheet
NVE IL712-3E Datasheet
Download the complete datasheet for NVE IL712-3E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

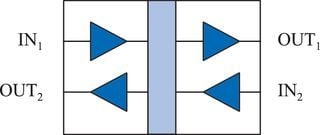

Product Images
