This analog circuit IC features 4 unidirectional channels and a CMOS technology. Operating with a supply voltage range of 3V to 5.5V, it supports a data rate of 110Mbps and offers an output current of 10mA. The component boasts a 2.5kV isolation voltage and a propagation delay of 15ns with 3ns pulse width distortion. Packaged in a lead-free SOIC-16 surface mount configuration, it operates between -40°C and 100°C.
PackageSOIC
Current16uA
MountingSurface Mount
Quick Jump:
Technical Specifications
NVE IL715-3E technical specifications.
General
Package/Case
SOIC
Channel Type
Unidirectional
Data Rate
110Mbps
Depth
6.2mm
Isolated Power
No
Isolation Voltage
2.5kV
Lead Free
Lead Free
Length
10mm
Max Input Current
20uA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
4
Output Current
10mA
Package Quantity
50
Packaging
Rail/Tube
Propagation Delay
15ns
Pulse Width Distortion (PWD)
3ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
IsoLoop®
Supply Current
16uA
Type
General Purpose
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
NVE IL715-3E Datasheet
Download the complete datasheet for NVE IL715-3E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

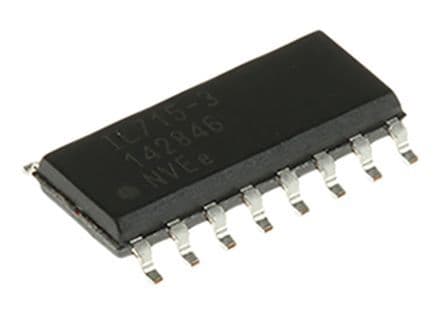

Product Images
