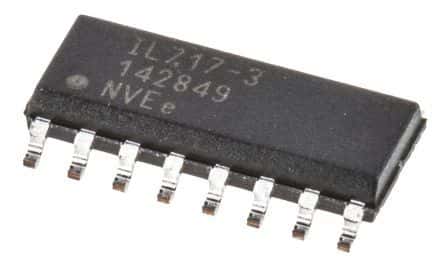

The IL717-3E is a high-speed, quad-channel digital isolator based on NVE's patented spintronic Giant Magnetoresistive (GMR) technology. It features three transmit channels and one receive channel, providing 2500 Vrms isolation in a narrow-body SOIC package. The device supports data rates up to 110 Mbps with typical propagation delays of 10 ns and excellent common-mode transient immunity (CMTI) of 100 kV/µs.
Temp Range-40 to +100°C
Quick Jump:
Technical Specifications
NVE IL717-3E technical specifications.
General
| Data Rate | 110Mbps |
| Isolation Voltage | 2500Vrms |
| Number of Channels | 4count |
| Channel Configuration | 3 / 1Forward/Reverse |
| Propagation Delay (Typical) | 10ns |
| Common Mode Transient Immunity | 100kV/µs |
| Supply Voltage Range | 2.7 to 5.5V |
| Operating Temperature Range | -40 to +100°C |
| Pulse Width Distortion | 3ns |
Compliance
| Safety Standard | VDE 0884-17 (IEC 60747-17) |
| Ul | UL 1577 Recognized |
| RoHS | Compliant |
Datasheet
NVE IL717-3E Datasheet
Download the complete datasheet for NVE IL717-3E to view detailed technical specifications.
