Quad 3-state buffer with non-inverting logic, featuring BICMOS technology. This surface mount IC operates from a 4.5V to 5.5V supply, with a typical 5V operating voltage. It offers 4 independent buffer elements, each with one input and one 3-state output. The device supports a high level output current of -32mA and a low level output current of 64mA, with a propagation delay of 4.6ns. Packaged in a 14-pin SSOP, this RoHS compliant component is suitable for a wide temperature range of -40°C to 85°C.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
NXP 74ABT125DB,112 technical specifications.
General
Package/Case
SSOP
High Level Output Current
-32mA
Logic Function
Buffer, Inverting
Low Level Output Current
64mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Bits per Element
1
Number of Channels
4
Number of Elements
4
Number of Input Lines
4
Number of Inputs
4
Number of Output Lines
4
Number of Outputs
4
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
78
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
4.6ns
RoHS Compliant
Yes
Series
74ABT
Technology
BICMOS
Turn-On Delay Time
6.8ns
Compliance
RoHS
Compliant
Datasheet
NXP 74ABT125DB,112 Datasheet
Download the complete datasheet for NXP 74ABT125DB,112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

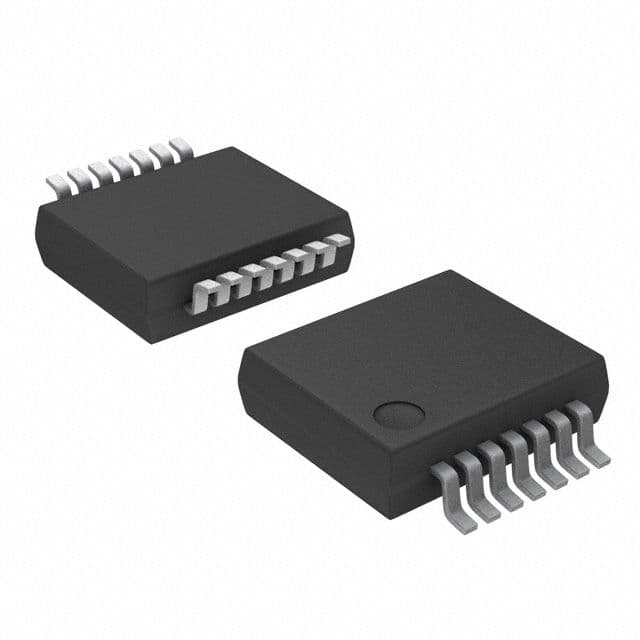

Product Images
