Technical Specifications
NXP 74HC20DB,112 technical specifications.
General
| Package/Case | SSOP |
| High Level Output Current | 5.2mA |
| Logic Function | NAND GATE |
| Low Level Output Current | 5.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Gates | 2 |
| Number of Input Lines | 4 |
| Number of Inputs | 4 |
| Number of Output Lines | 1 |
| Package Quantity | 78 |
| Packaging | Rail/Tube |
| Propagation Delay | 15ns |
| Quiescent Current | 2uA |
| RoHS Compliant | Yes |
| Series | 74HC |
| Turn-On Delay Time | 8ns |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74HC20DB,112 Datasheet
Download the complete datasheet for NXP 74HC20DB,112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

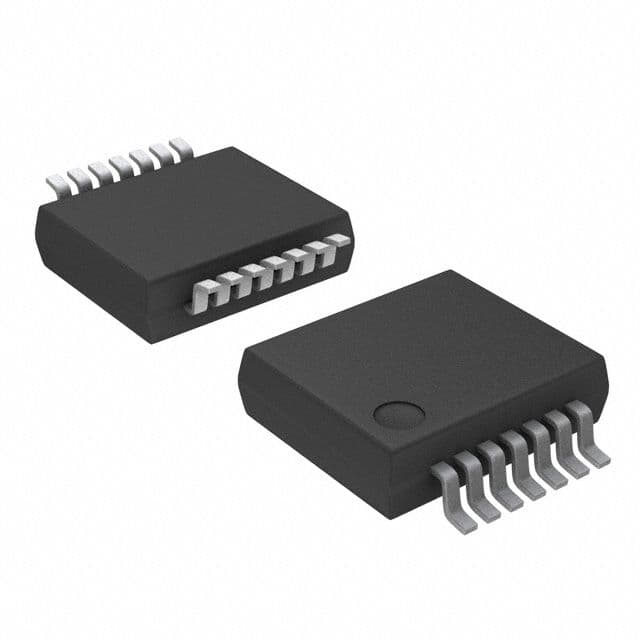

Product Images
